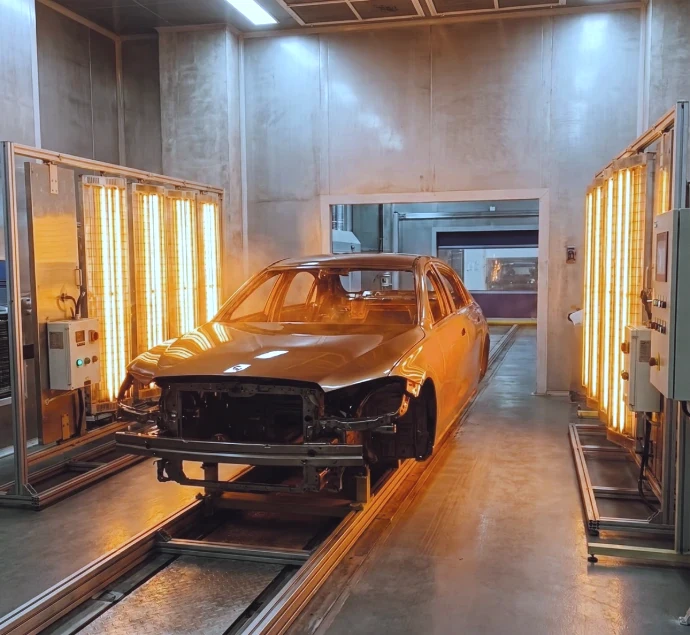

Precise drying, brilliant coating. When traditional hot-air circulation struggles to be fast, uniform, energy-efficient and compact at once, infrared heating delivers all four.
Unlike convection drying, infrared radiation needs no heating medium — it transfers energy directly to the coating as electromagnetic waves. This 'substrate-induced' heating brings faster cure, uniform heat, lower energy use and a compact footprint.
Infrared penetrates the paint film instantly, curing the coating in seconds to minutes — shortening oven length and cycle time, directly boosting throughput.
Precise wavelength matching lets water in waterborne paint absorb energy first, preventing skin-over and eliminating pinholes, orange peel and blistering.
Energy targets the workpiece with no bulk air-heating loss — 30-60% energy saving versus hot-air ovens, with instant on.
Compact lamp arrays embed into existing ovens or build standalone fast-dry modules — ideal for waterborne pre-dry and powder melt-leveling.
Precise temperature control reduces VOC emissions, helping plants comply with stricter regulations.
Medium/long-wave infrared gently evaporates moisture, preventing boiling pores and laying a dense base.
Medium/short-wave arrays matched to water absorption achieve lightning dewatering, enabling wet-on-wet.
Short-wave infrared penetrates to the basecoat interface for deep crosslinking — high gloss, scratch resistance.
Infrared rapidly melts powder into a smooth coating — ideal for wheels, frames and suspension parts.
Portable infrared lamps dry precise local areas without affecting surrounding old paint.
High-purity quartz tubes with gold reflective coating — >96% radiation efficiency, full power in 1-2 seconds.
Near-infrared, medium, fast-medium and long wave — main wavelength selected via spectral analysis of your coating.
Computer-simulated lamp arrays keep temperature difference within ±5°C across the 3D body surface.
Thermal-shock and contamination resistant tubing maintains ultra-long life in dusty, paint-mist environments.
PID control, zoned start-stop and MES integration for full data traceability.
We have helped lines cut waterborne basecoat drying time by 40% while reducing oven length by 15 meters.
| Application | Recommended band | Typical setup | Key point |
|---|---|---|---|
| Spot repair / local drying | Short-wave primary | Portable or station lamp bank | Seconds to full power |
| Whole-vehicle / part pre-drying | Medium-short wave | Tunnel lamp array + air knives | Matched to water absorption, prevents boiling |
| Clearcoat / topcoat curing | Fast medium wave | Tunnel + convection hybrid | Even cure across film builds |
| Powder melt & cure | Medium wave | High-reflectance chamber | Melt → flow → cure in one pass |
| E-coat primer drying | Medium / long wave | Gentle radiant + equalising zone | Prevents boil-out; dense base film |
Bands and power density engineered per coating system; before/after trial support available.
Infrared heating acts on the coating by radiation: faster heat-up, lower energy consumption and compact equipment, ideal for spot drying, repair and space-constrained stations. Convection ovens suit full-body uniform baking. The two are often combined as "infrared pre-dry + convection cure".
Typical applications: spot repair and blend-out drying, body moisture drying before pretreatment, basecoat/clearcoat pre-drying, curing of plastic and component parts, and takt-limited retrofit projects. SYZOY supplies near/medium/long-wave infrared lamps as complete systems.
Selection follows the absorption characteristics of coating and substrate: short wave penetrates well for metal substrates and powder; medium wave matches waterborne and solvent evaporation bands; long wave suits rapid surface heating. SYZOY provides sample testing and wavelength selection.
Compared with pure hot-air solutions, localized infrared applications typically save 30-60% energy depending on the case, and significantly shorten heat-up time. Actual savings are calculated against your parts, takt and coating system.
Nearly 30 coating lines delivered. Let us help you plan, build or upgrade yours.
